Product introduction: the ginkgo leaf dryer has a feeding heating part, a drying part and an induced air separation part. The water content of the dried ginkgo leaves can be reduced from 78% to 8%, which solves the problems of anti-corrosion and fresh-keeping of Ginkgo leaves in transportation and storage The ginkgo leaf dryer produced by our company adopts high-temperature rapid drying process, with high drying intensity and short residence time of materials in the dryer, which greatly increases the output compared with the dryer with the same volume. The drying temperature of Ginkgo biloba leaves can be adjusted according to the degree of dryness and wetness. The drying quality is guaranteed, and the structure is simple, easy to operate and high production efficiency

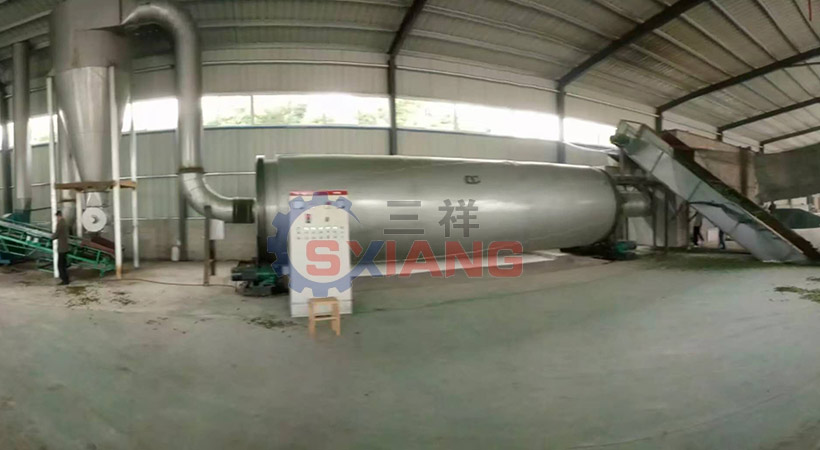

Working principle: high temperature flue gas is used as the medium to enter the drum dryer. The downstream drying process is adopted. Four small rollers are set at the lower part of the drum to support and drive the drum dryer to rotate. The fresh leaves are transported to the feeding port by the lifting feeder. The wet material is brought into the rotating dryer room by the hot air, and the material moves forward continuously under the action of plate making and air flow in the cylinder. Therefore, the wet material is in full contact with the hot air to produce heat exchange, so as to improve the thermal efficiency and drying intensity. The dried leaves leave the dryer and then enter the air flow stone remover to remove impurities, and enter the cyclone separator for gas-solid separation, The waste moisture is extracted by the fan, and the dry material is discharged through the air shutoff.

Applicable materials: drying of Ginkgo biloba leaves, broccoli stems and leaves, ginger leaves, barley seedlings, marigold, corn germ, straw, Chinese herbal medicine, etc.
